Continuous Infusion, Duel Pump System

The Wonder of the Dual System

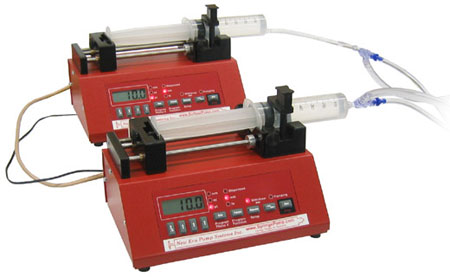

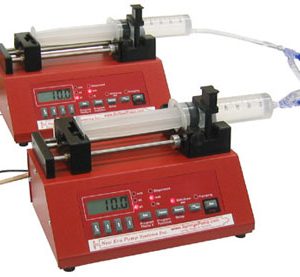

The Continuous Infusion/Dual Pump System is smart, simple and saves you tons of money. With this system you have three pumps in one at a price that is less than any push/pull or emulsification syringe pump you can get from the competition. The Dual System allows two pumps to talk to one another through a cable. This allows the flexibility for the pumps to perform either continuous flow(push/pull), emulsification or independently at any time.

Category:

Features

Description

Features Exclusive to Dual Pump System:

  • Utilizes specialized dual pump sync cable kit to synchronize both pumps, a command on one pump will update the other on the fly.
  • Includes: 2 NE-1000 programmable single syringe pumps, sync cable kit, and two power supplies
  • Disconnect the cable kit and you have two independent syringe pumps

Features of the NE-1000 Family of Syringe Pumps:

  • Built for automation
  • Operates stand-alone or from a computer
  • Infusion and withdrawal
  • Set a single pumping rate and/or dispensing volume
  • Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
  • Network, control, and monitor up to 100 pumps with one computer
  • Worldwide power supplies available
  • Motor stall detection
  • Dispensing accuracy of +/-1%
  • Unlimited lifetime technical support
  • Two year warranty
Example Flow Rates: Dual Syringe
Syringe Size Maximum Rate Minimum Rate
0.5 µL 25.49 µL/hr 0.001 µL/hr
1 µL 53.09 mL/hr 0.73 µL/hr
3 µL 192.5 mL/hr 2.646 µL/hr
5 µL 406.1 mL/hr 5.581 µL/hr
10 mL 600 mL/hr 8.244 µL/hr
20 mL 975.8 mL/hr 13.41 µL/hr
30 mL 1282 mL/hr 17.63 µL/hr
60 mL 2120 mL/hr 29.13 µL/hr

Dual NE-1010 Higher Pressure Syringe Pump

Model: DUAL-NE-1010

Suggested List Price: $1670 USD

Description:

  • Same description and all the features of the DUAL-NE-1000 plus more
  • Flow rates and pressure of the NE-1010 Syringe Pump

Dual NE-4000 Double Syringe Pump

Model: DUAL-NE-4000

Suggested List Price: $1960 USD

Description:

  • Same description and all the features of the DUAL-NE-1000 plus more
  • Holds 4 syringes up to 60 cc
  • If you need to create two continuous infusion streams this requires 2 Dual Pump Plumbing Kits for full use of all four channels in the system.

Dual Pump Plumbing Kit

Description:

  • For use with our continuous infusion system or dual infusion system
  • Provides a dual check valve for two syringes, withdraw will pull fluid from a reservoir and infusion will output into a separate line
  • The kit is pre-assembled, all you need to do is plug in the syringes
  • Each dual check valve uses 6″ of 1/8″ tubing to connect to a Y connector, one for reservoir and one for output; each Y-connector has 5′ of tubing to make connections to your application. Two 60cc Terumo syringes are included
  • Individual parts are also available
