Eliminates Flow Rate Pauses & Drop-Offs

How it works:

The refilling syringe pump fills the syringe at a faster rate than the infusing syringe pump infuses, giving it time to prime the syringe after the syringe is filled, or even overlap the infusion to create a seamless transition between syringes.

The smoothness of the transition between syringes can be fine tuned by adjusting the infusion rate, refill rate, priming rate, prime volume and overlap volume parameters.

Description:

• Two single syringe pumps, each pump holds 1 syringe up to 60 cc, or 140 cc partially filled.
• Infusion rates from 0.73 µL/hr (1 cc syringe) to 2100 mL/hr (60 cc syringe)
• Includes all the advanced functions and programming features of the NE-1000 family
• Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.
• Dual Pump Plumbing Kit, the syringes and plumbing (sold separately, see below), complete the continuous system.
• Easy-to-use keypad interface
• Download Brochure

Requirement:

Two Pumps from the NE-1000X family of syringe pumps (any 2 NE-1000 family of syringe pumps with an X upgrade in each pump). Pumps can be different models. One dual pump cable (Model: CBL-DUAL-3).

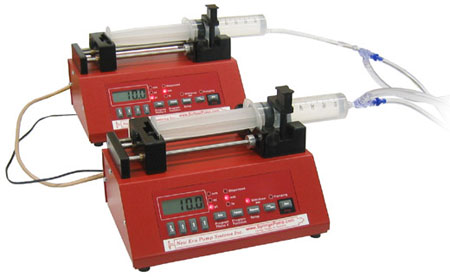

Features of the DUAL-NE-1000X:

• Includes: 2 NE-1000X programmable single syringe pumps, sync cable kit and two power supplies.
• Utilizes specialized dual pump sync cable kit to synchronize both pumps.
• Flexibility for the pumps to perform either continuous flow, emulsification or independently at any time.

Features of the NE-1000X Family of Syringe Pumps:

• Built for automation
• Operates stand-alone or from a computer
• Infusion and withdrawal
• Set a single pumping rate and/or dispensing volume
• Applications range from simple infusions to complex pumping programs
• Programmable preset protocols
• Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
• RS-232 and TTL logic control interfaces
• Network, control, and monitor up to 100 pumps with one computer.
• Gradient ramping of flow rates
• Worldwide power supplies available
• Motor stall detection
• Non-volatile memory of all parameters and programming
• Upgradable to 340 pumping phases program memory with the X2 Upgrade
• Dispensing accuracy of +/-1%
• Unlimited lifetime technical support
• Two year warranty

Example Flow Rates for the DUAL-NE-1000X:

• For a more complete list of flow rates, download brochure.
• Need higher flow rates? Contact us. We have other models available.

Dual Pump Plumbing Kit

Description:

• For use with our continuous infusion system or dual infusion system
• Provides a dual check valve for two syringes, withdraw will pull fluid from a reservoir and infusion will output into a separate line
• The kit is pre-assembled, all you need to do is plug in the syringes
• Each dual check valve uses 6″ of 1/8″ tubing to connect to a Y connector, one for reservior and one for output; each Y-connector has 5′ of tubing to make connections to your application. Two 60cc Terumo syringes are included
• Individual parts are also available
