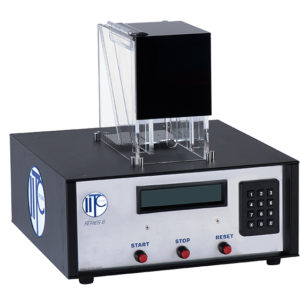

Incapacitance Meter Test Mice, Rats and Birds
The IITC Incapacitance Test Meter is used for test assessment of pain and or inflammation of the hind limbs on mice and rats. It overcomes the drawbacks of other methods that might cause unnececessary stress or subjectivity on the animal. The technique known as dynamic weight bearing enables the test on both limbs allowing a clean stress free correlation to the paw pressure test. Control and testing can be done on the same animal at the same time.
Features
Description
| Part # | Description |
|
600MR |
Incapacitance Analgesia Meter for mice rat |
|
600MH |
Mouse holder |
|
600RH |
Rat holder |
|
Series 8 |
Software |
Details

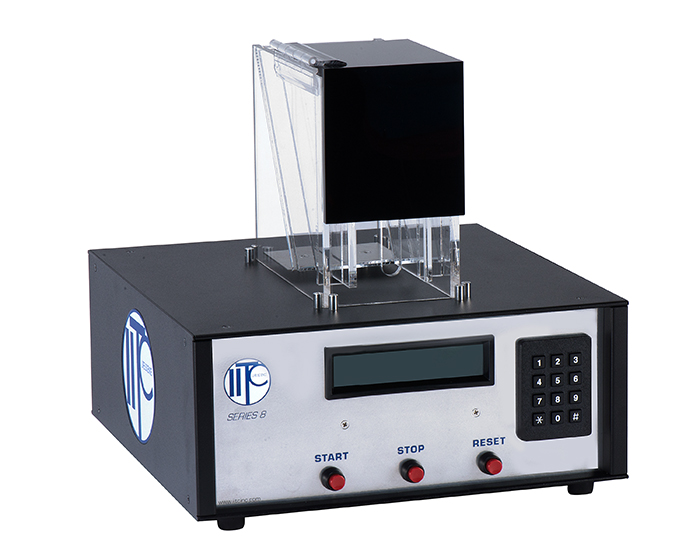

Animals are placed in the supplied rodent restrainers. Hind limbs rest on the two weight averaging platform pads. As the animal shifts their weight from each pad, the unit records the average weight in grams over a selectable test period of 5 to 999 seconds. Alphanumeric readout displays the weight of both limbs and testing start and stop features. These features are controlled on the front panel: Start, stop, reset.
The standard holder that is supplied is for adult mice and rats 180-270 grams. Other sizes are available inquiry within.
When the system is used on birds the system is supplied with a custom stand allowing bird Incapacitance tests.
Specs
Articles
Software
The IITC Series 8 software is available for each Series 8 unit. The individual software will capture data in real-time from one of the units and can be exported into Excel or other spreadsheet programs.
Data supplied:
Test
Animal number
Date
Time
Duration
Temperature
Starting temperature
Stop temperature
Set point temperature
Active intensity
Idle intensity
Cut off time
Reaction time
Top end speed
Distance
The data supplied will depend on which Series 8 equipment is used with the corresponding software.
| Part # | Description |
|
Series 8 |
Series 8 Software for Analgesia Equipment |
