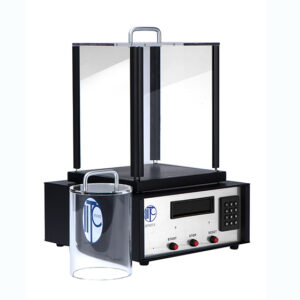

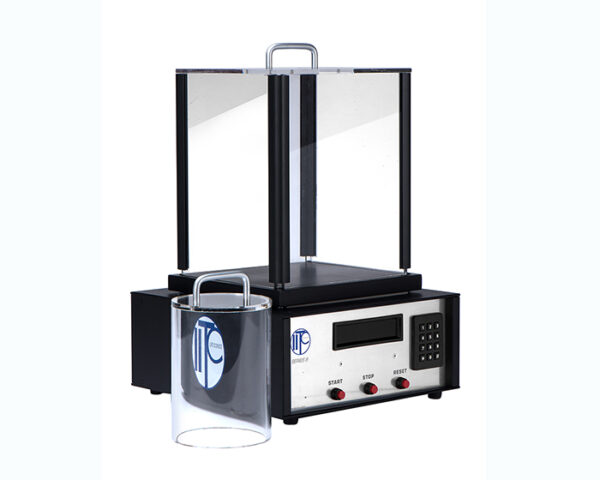

IITC Hot Plate Analgesia Test Meter Mice and Rats

• Temperature is indicated in 0.1 deg c. increments
• Holding accuracy is +/- 0.1 deg c.
• Mice and Rats
• Digitally controlled
• Footswitch
• Software – USB – (optional)

Details

All functions are entered via a keypad on the front panel they are:

Current temperature
Animal number
Current time
Current date
Output data to printer
Set point temperature in Celsius.

The plate’s surface temperature can be adjusted from ambient up to 75 degrees Celsius. Plate has consistent temperature throughout providing accurate tests.

All systems are supplied with both a mouse and rat enclosure allowing testing of both animals standard.

If needed IITC allows purchase of each enclosure separately.

39 Hot Plate Analgesia Meter for Mice and Rats

Footprint: 12” x 12” x 5”

Equipment Material: Powder coated aluminum

Hot Plate material:  Anodized aluminum

Hot Plate dims. :  9 ¾” x 8 ½”

Animal Enclosure Material: Plexi-Glas

Animal Enclosure Diameter: Mouse -4” Dia. – Rat 7 1/2” x 8 1/2”

Temperature range:  Ambient to 65 deg. C (.1 deg. C increments)

Switchable: 110/220V

3 Amp.

Series 8 Software:  Windows

CE Certified
