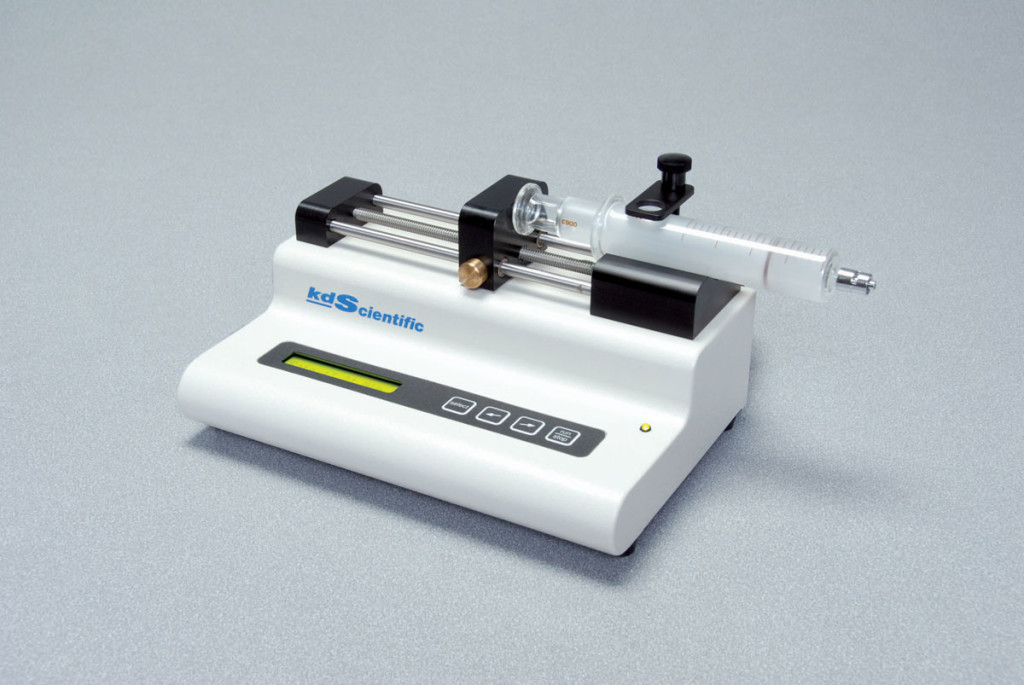

KDS 100L Pump

The KDS 100 is now available with an optional LED to indicate the pump is on or running. This feature is ideal to get a quick indication if the pump is dispensing, especially if multiple pumps are in operation.
Also available 101L, 120L 310L

Category: KD Scientific

Features

Single syringe 10 µl to 60 ml, any manufacturer
Simple menu-driven setup:
- select syringe size from displayed table
- set dispense volume
- set dispense flow rate
Easy to read bright, backlight display
Dispense volume displayed and has automatic shutoff at completion
Volume and flow rate units (µl/hr or ml/hr) are selected automatically based on syringe size
Last settings stored in permanent memory
Button release of drive nut for easy syringe installation
Choice of run / stop after a power interruption

Description

Specs

Specifications
Pump Type:	Infusion
Max. No. of Syringes	One
Syringe Size	10 µl to 60 ml
Dimensions	9 x 6 x 5 in. 23 x 15 x 12 cm
Weight	4.5 lb (2 kg)
Linear Force	20 lb (9 kg) min.
Advance Per Microstep	0.529 micron (1/2 step)
Max Step Rate (1/2 Step)	400 steps/sec
Min Step Rate	1 step / 30 sec.
Accuracy	± < 1%
Reproducibility	± 0.1%
Audible Alarm	(Optional) **
