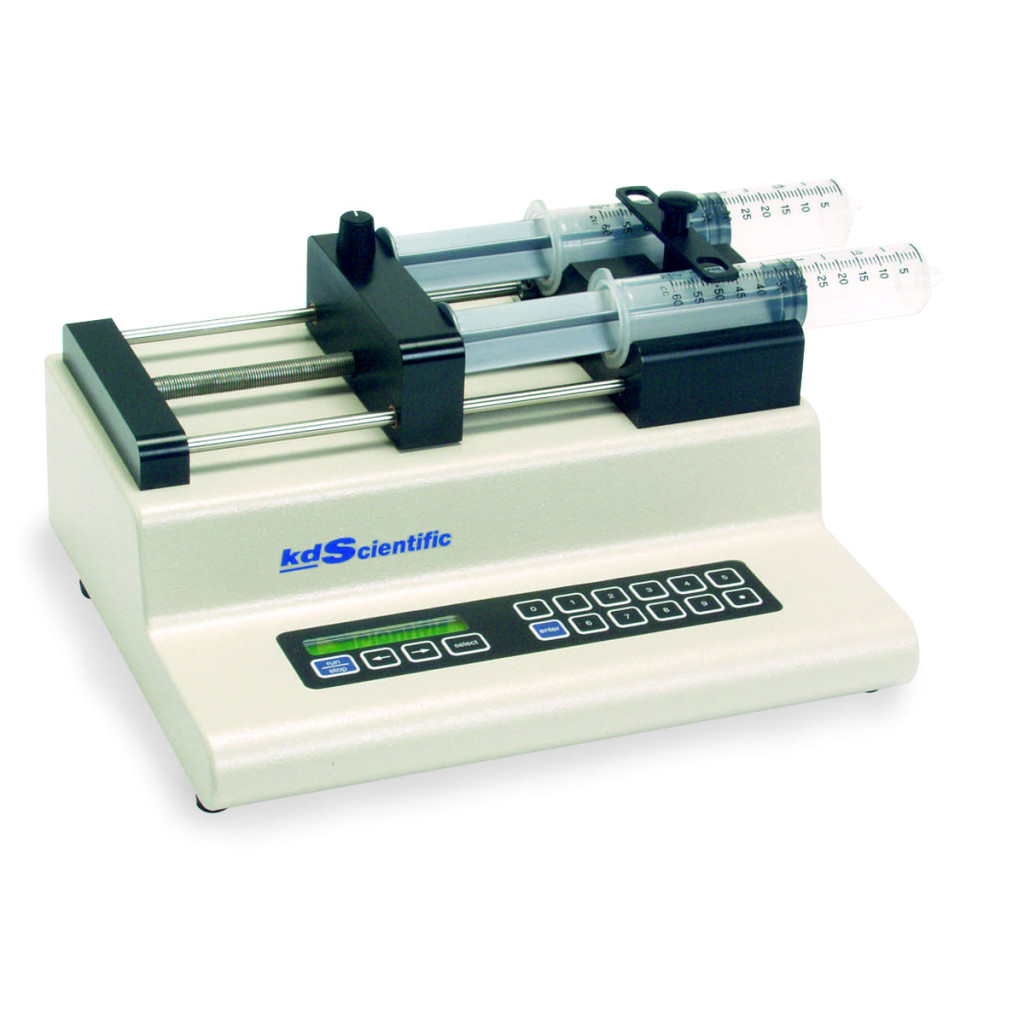

KDS200 Syringe Pump

Two-Syringe Infusion Pump. This feature-laden two-syringe infusion pump combines a broad speed range and holds a wide range of syringe sizes to meet the requirements of virtually any laboratory application.

Category: KD Scientific

Features

Holds one or two syringes, 10 µl to 140 ml each
Backlit LCD display
Knob locks/unlocks drive block for effortless, drag-free manual adjustment
Simple menu-driven setup:
- select syringe size from displayed table
- dispense volume
- dispense flow rate
Continuous dispense volume display
Preset volume control and automatic shut-off
Choice of unit selection
Settings can be reviewed or changed during operation
Stall detection
Last settings stored in permanent memory
Built-in RS232C interface for computer “daisy chaining” up to 100 pumps
TTL interface for foot switch, timer, relay control, outputs for run indicator, valve control
Optional multi-step keypad programmable feature (KDS200P)

Description

Specs

Specifications
Pump Type:	Infusion
Max. No. of Syringes	Two
Syringe Size	10 µl to 140 ml
Dimensions	11 x 9 x 5.5 in. 28 x 23 x 15 cm
Weight	9 lb (4 kg)
Linear Force	40 lb (18 kg)
Advance Per Microstep	0.165 micron (1/16 step)
Max Step Rate (1/2 Step)	1600/sec
Min Step Rate	1 step 1/100 sec
Accuracy	± < 1%
Reproducibility	± 0.1%
Audible Alarm	(Optional) **
