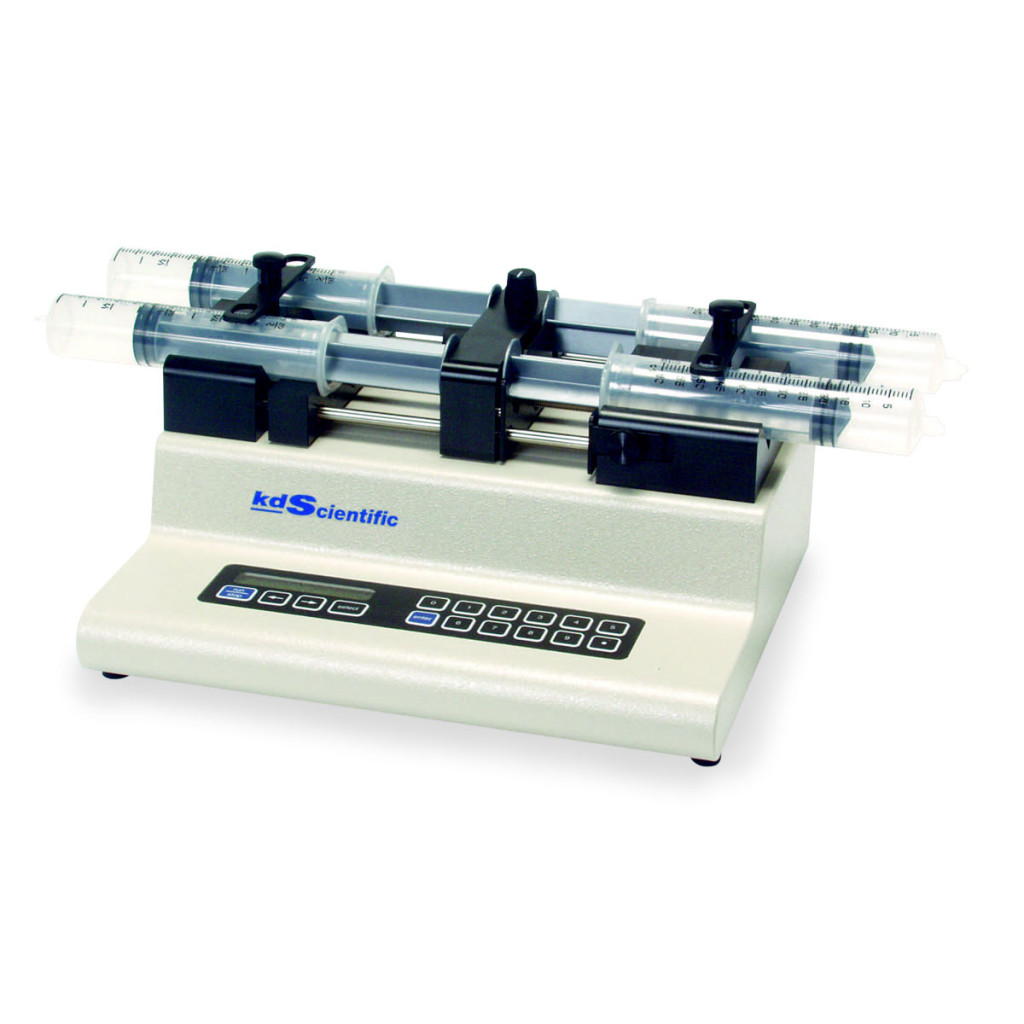

KDS260 Syringe Pump

This KDS pump provides simultaneous infusion and withdrawal with opposing syringes on a single drive. The KDS260 is an adaption of the KDS210. The pump has been modified to hold an additional syringe so that as one syringe infuses, while the second syringe withdraws at the same rate. The Push/Pull mode is designed for one cycle only.

Category: KD Scientific

Features

Holds up to four syringes, 10 µl to 60 ml each. With large syringes, the full volume may not be usable.
Backlit LCD display
Knob locks/unlocks drive block for effortless, drag-free adjustment
Simple menu-driven setup:
- select syringe size from displayed table
- dispense volume
- dispense flow rate
Continuous dispense volume display
Preset volume control and automatic shut-off
Settings can be reviewed or changed during operation
Stall detection
Choice of unit selection
Last settings stored in permanent memory
Built-in RS-232C interface for computer “daisy chaining” up to 100 pumps
TTL interface for foot switch, timer, relay control, outputs for run indicator, valve control
Independent rate and volume settings for infusion and withdrawal
Multiple mode selection:
- Withdrawal for push/pull
Optional multi-step keypad programmable feature (KDS260P)

Description

Specs

Specifications
Pump Type:	Push/Pull
Max. No. of Syringes	Two in each direction
Syringe Size	10 µl to 60 ml
Dimensions	11 x 9 x 5.5 in. 28 x 23 x 14 cm
Weight	9 lb (4 kg)
Linear Force	40 lb (18 kg)
Advance Per Microstep	0.165 micron (1/16 step)
Max Step Rate (1/2 Step)	1600/sec
Min Step Rate	1 step / 100 sec.
Accuracy	± < 1%
Reproducibility	± 0.1%
Audible Alarm	(Optional) **
