Features
Description
Description:

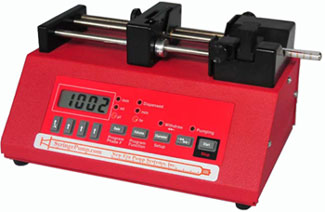

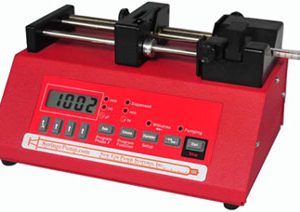

- The smoothest microfluidic syringe pump on the market. (Compare our advance per step with the competition and discover for yourself).
- Holds 1 syringe up to 60 mL*
- Advance Per Step: 4.252232 Nanometers
- Infusion rates from .008 nL/hr (.5 µL syringe) to 2545 µL/min (140 mL syringe)
- Available in Double Syringe (NE-4002X) version
- Easy-to-use keypad interface
- Space Saving Chassis: Foot print size of only 5 3/4″ x 8 3/4″
Won’t take up unnecessary space on your laboratory or production bench - Includes all the advanced functions and programming features of the NE-1000 family
- Includes the X Upgrade Smooth Linear/Gradient increasing and decreasing pumping feature
- Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.
- Download Brochure
Special Application: Continuous Infusion (Push-Pull) and Dual Syringe Pump
Using 2 NE-1000 pumps attached with a cable, one pump will infuse while the other pump refills or have simultaneous infusion.
Features of the NE-1000 Family of Syringe Pumps:
- Fully programmable; automation capable
- Operates stand-alone or from a computer
- Infusion and withdrawal
- Set a single pumping rate and/or dispensing volume
- Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
- Network, control, and monitor up to 100 pumps with one computer
- Worldwide power supplies available
- Motor stall detection
- Dispensing accuracy of +/-1%
- Unlimited lifetime technical support
- Two year warranty
Example Flow Rates: NE-1002X & NE-4002X
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
Sample syringe configurations, can hold any size syringes below 60 cc.
Maximum syringe size:Although a maximum of a 60 cc syringe is specified, the pump can hold up to a 140 cc syringe but can only open up to about 120 cc lengthwise. |
|||||||||||||||||||||||||||
