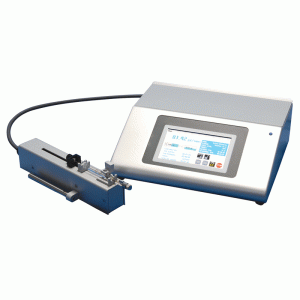

Legato 130 Single Syringe Infuse/Withdraw Syringe Pump

Single syringe infuse/ withdraw with program option for 2 programs. 50 steps each. Holds one syringes from 0.5µl to 1000µl. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Category: KD Scientific

Features

Holds one syringe from 0.5µl to 1000µl
High resolution color touch screen
Unparalled ease of use
Touch pad “lock” feature
LED light on front panel
Full metal chassis
Built in syringe table
Up to 11 lbs linear force
Advanced microstepping techniques
Built in RS485 interface
USB port
I/O & TTL interface
Continuous mode of operation
Spill dam

Description

Click here to view syringe volume/diameter reference table

Specifications
Accuracy:	± 0.5%
Reproducibility	± 0.05%
Syringes (Min/Max)	0.5µl to 1000µl
Flow Rate:	Minimum (0.5 µl syringe): 3.66 pl/min Maximum (1000µl syringe): 3.818 ml/min
Display	4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory	Stores all Settings
Connectors:	RS485 – IEEE-1394 6 pos USB – Type B I/O & TTL – 15 pin D-Sub Connector Footswitch – mini phono jack
Linear Force (Max)	5 kg (11 lbs) @ 100% Force Selection
Drive Motor	1.8° Stepper Motor
Motor Drive Control	Microprocessor with 1/16 microstepping
Number of Microsteps per one rev.of Lead Screw	3,200
Step Rate – Minimum	27.5 sec/ustep
Step Rate – Maximum	52 usec/ustep
Pusher Travel Rate – Minimum	0.433 µm/min
Pusher Travel Rate – Maximum	228.97 mm/min
Input Power	12-30 VDC
Input Power Connection	2.5mm ID x 5.5mm OD male plug
Power	100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions	22.6 x 17.78 x 9.32 cm (9 x 7 x 3.67 in)
Weight	1.96kg (4.32 lbs)
Operating Temperature	4 degree C to 40 degree C (40 degree F to 104 degree F)
Storage Temperature	-10 degree C to 70 degree C (14 degree F to 158 degree F)
Humidity	20% to 80% RH non condensing
Mode of Operation	Continuous
Classification	Class 1
Pollution Degree	1
Installation Category	11
Regulatory Certification	CE, EU RoHS
